PORTABLE HOISTS - SERIES D

Applications

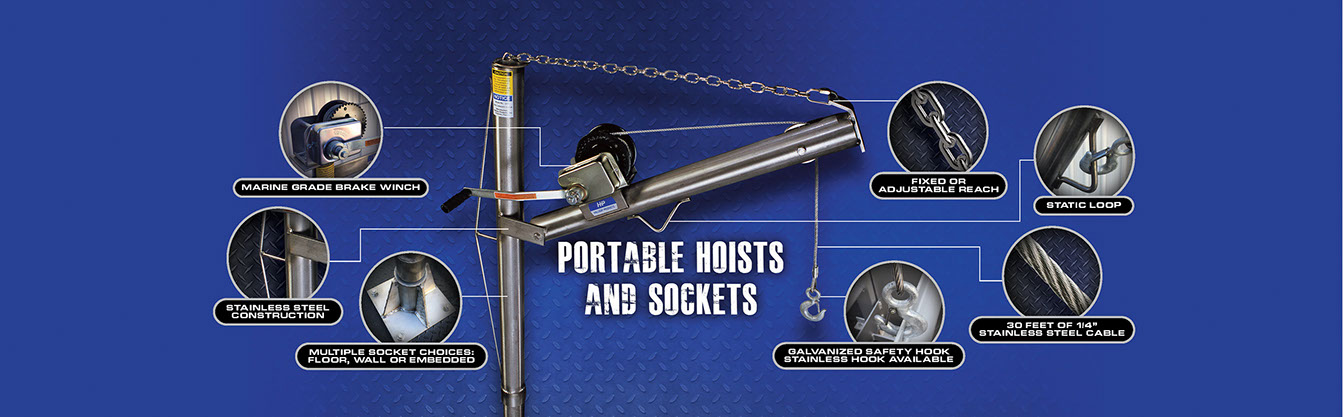

Halliday portable hoists are of all stainless steel construction, and are engineered for basic hoisting requirements of relatively light equipment. They are available in 500, 1000, and 1500 lb. (227, 454, and 680 kg.) load capacities, and with 24" (610mm). fixed or 24" - 36" (610mm - 914mm) adjustable reaches. Capacities will vary based upon height of mast and length of reach. The hoists feature a stainless steel gear/brake winch, with 30 ft. (9 meters) of stainless steel cable, and galvanized safety hook.



Options

  • Additional winches (Consult Factory)
  • Stainless steel safety hook
  • Stainless steel mounting socket, in embed, wall-mount, or floor-mount styles (lined or unlined). See below
  • Stainless steel socket caps
  • Additional stainless steel cable
  • Other reaches available upon request

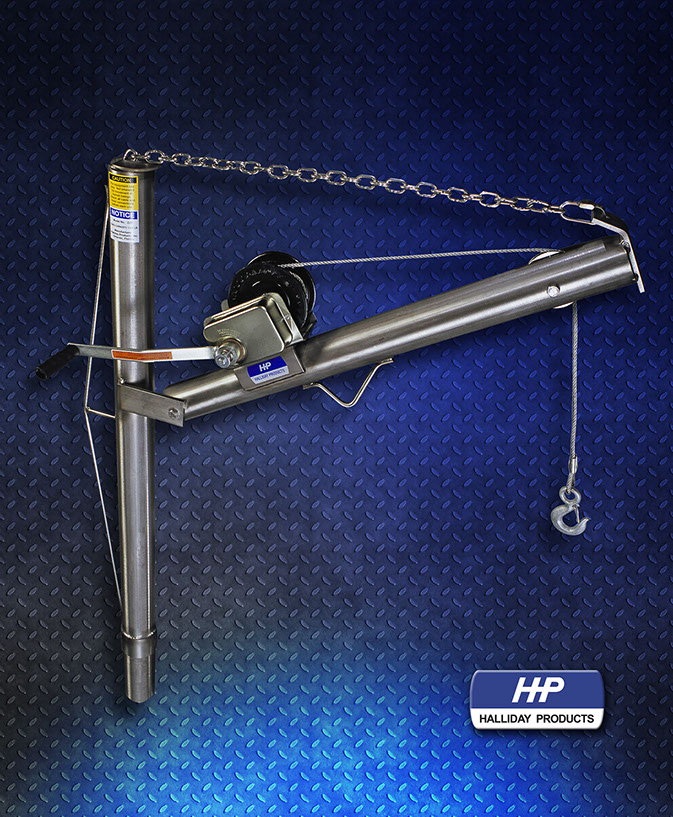

Series DA & DM - Portable Hoist

Fixed reach stainless steel portable hoists are commonly used to raise and lower pumps and other equipment at wet well locations. Units are supplied with a marine grade manually operated brake winch with 30 ft. (9 meters) of stainless steel cable and galvanized safety hook. The standard fixed reach is 24" (610mm) with other reaches available. The overall height of the unit is 60" (1.5m) with a net lift of 49" (1.3m). Units with maximum load ratings of 500, 1000 and 1500 lbs. (227, 454, and 680 kg.) are available. Socket choices are embedded, wall mounted and floor mounted. Units are not suitable for confined space applications where raising or lowering of humans is required.





Get a Quote for DADownload DA Drawing (PDF) ››Download DA Drawing (DWG) ››Get a Quote for DM

Series DB - Portable Hoist

Adjustable reach stainless steel portable hoists are commonly used to raise and lower pumps and other equipment at wet well locations. Units are supplied with a stainless steel manually operated brake winch with 30 ft. (9 meters) of stainless steel cable and galvanized safety hook. The adjustable reach is from 24" to 36" (610mm to 914mm) in 1" (25mm) increments. The overall height of the unit is 60" (1.5m) with a net lift of 49" (1.3m) for a 24" (610mm) reach to 34" (.9m) for a 36" (914mm) reach. Units with maximum load ratings of 300, 1000 and 1145 lbs.(136, 454 and 519 kg.) are available. Socket choices are embedded, wall mounted and floor mounted. Units are not suitable for confined space applications where raising or lowering of humans is required.





Get a Quote for DBDownload DB Drawing (PDF) ››Download DB Drawing (DWG) ››

Series D Sockets - Portable Hoist

Stainless steel sockets for field-mounting stainless steel portable hoists are available in three styles. The embed version is cast into the concrete slab, and a stainless steel cap is available to keep it free of debris. The wall-mount and floor-mount versions are installed after the concrete slab is in place. The wall version is bolted to the pit wall, under the pit access cover. The floor-mount version is used to assure accurate pick point placement after equipment is already in the pit. Sockets are unlined, with a lined version optional. The option incorporates a friction-reducing liner, for smoother rotation of hoist mast. Caps are available for the embed style socket to keep them debris free.



Get a Quote for SocketDownload Socket Drawing (PDF) ››

Click image to enlarge

Portable Hoists - SERIES D
