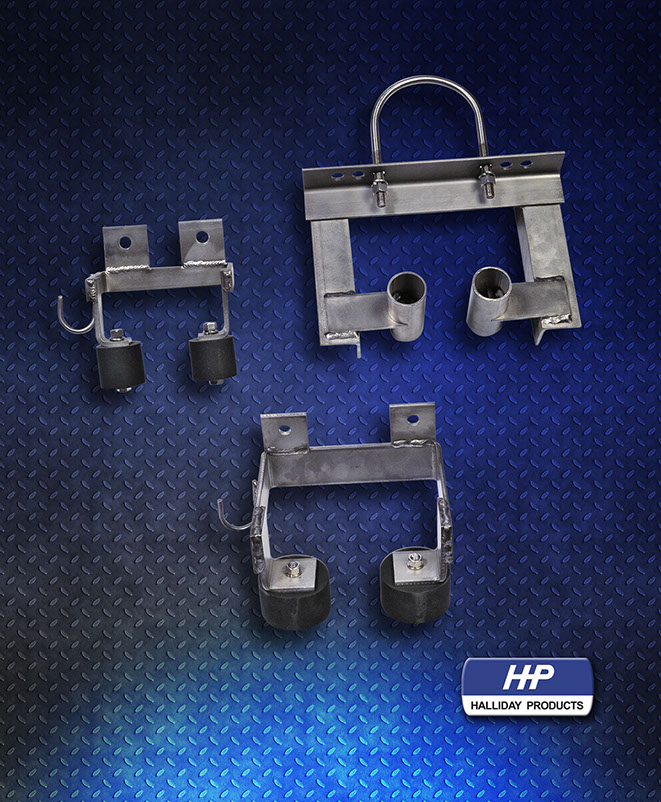

GUIDE RAIL BRACKETS - SERIES U

Applications

Halliday Products Inc. manufactures a wide variety of stainless steel upper and intermediate major submersible pump lines. To ensure proper pricing as well as fit and alignment, the following information is required:



Standard Features Include:

  • Available in type 304 or 316 stainless steel
  • Single and double rail designs
  • Upper and intermediate brackets available
  • Manufactured for all submersible pumps
  • Most upper brackets provided with neoprene bushings with compression stems

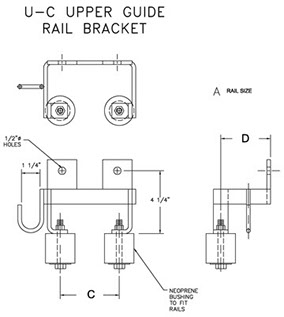

For Upper (Top) Brackets:

  • Single and double guide rail designs
  • Guide rail pipe size (A Dim.)
  • Guide rail Center to Center spacing
    (C Dim.)
  • Distance from wall to guide rail pipe
    center (D Dim.)
  • Material = T-304 or T-316 stainless steel.



Get a Quote for Single RequirementsGet a Quote for Double RequirementsDownload Series U Drawing (PDF) ››Download Series U Drawing (DWG) ››

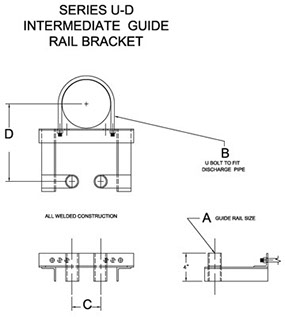

For Intermediate Brackets:

  • Single and double guide rail designs
  • Guide rail pipe size (A Dim.)
  • Discharge pipe size (B Dim.)
  • Guide rail Center to Center spacing
    (C Dim.)
  • Center line of discharge to center of
    guide rail pipe (D Dim.)
  • To determine D Dim. click here
  • Material = T-304 or T-316 stainless steel



Get a Quote for Single RequirementsGet a Quote for Double RequirementsDownload Series U Drawing (PDF) ››Download Series U Drawing (DWG) ››
