ADDITIONAL PRODUCTS

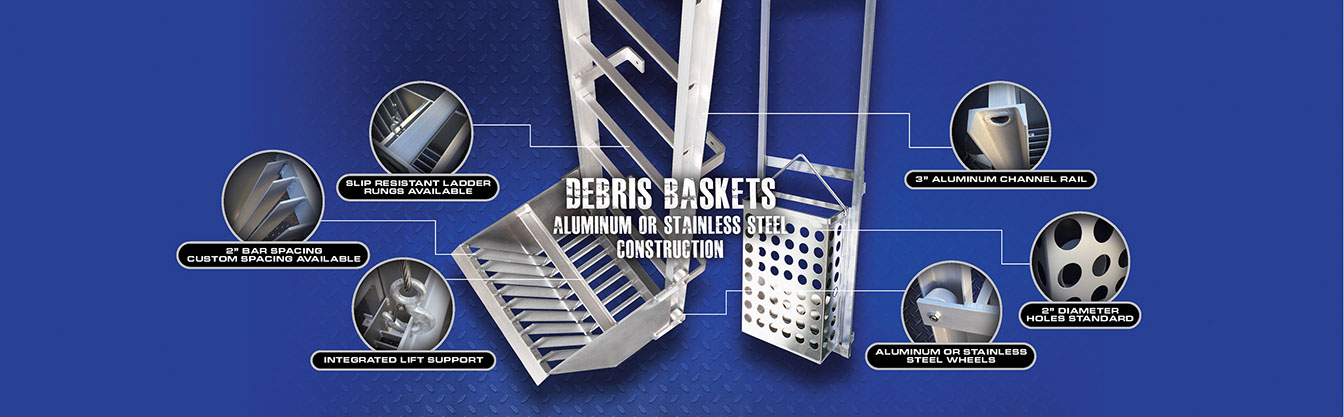

DEBRIS BASKETS - SERIES B

Halliday Products offers a variety of debris baskets and guide rail systems for applications with up to 36 inch (914mm) diameter influent lines. Our economical debris basket systems are manufactured in aluminum, type 304 stainless steel or type 316 stainless steel and as with all of our products, custom sizes are not a problem.



Series B1A - Trash Basket

Perforated style trash baskets are used to screen out solids that may otherwise damage pumping equipment in wet wells. This style basket is for light duty applications, screening up to an 8 inch (302mm) influent pipe. Standard baskets are manufactured of aluminum or stainless steel and are used in conjunction with either an extruded aluminum or stainless steel pipe rail system, which is used to position the basket at the proper elevation. The standard hole configuration is 2 inch (51mm) holes on 3 inch (77mm) centers with other hole sizes and spaces available. Trash baskets are used with portable hoists, which are used to raise and lower the basket for cleaning purposes.





Get a Quote for B1AGet a Quote for B1A (Non-Standard Units)Download B1A Drawing (PDF) ››Download B1A Drawing (DWG) ››

Series B1B - Trash Basket

Bar rack style trash baskets are used to screen out solids that may otherwise damage pumping equipment in wet wells. This style basket is for heavy-duty applications, screening up to a 36 inch (914mm) influent pipe. Standard baskets are manufactured of aluminum or stainless steel and are used in conjunction with a heavy-duty aluminum or stainless steel channel rail system. Units are supplied with solid aluminum or stainless steel wheels. Standard bar spacing for the front, back and bottom of the basket is 2 inches (51mm) with other spacing available. The basket sides are solid but can be perforated if required. The standard rail system doubles as a ladder and can be manufactured as a guide rail system only if required. Trash baskets are used with portable hoists, which are used to raise and lower the basket for cleaning purposes.





Get a Quote for B1BGet a Quote for B1B (Non-Standard Units)Download B1B Drawing (PDF) ››Download B1B Drawing (DWG) ››

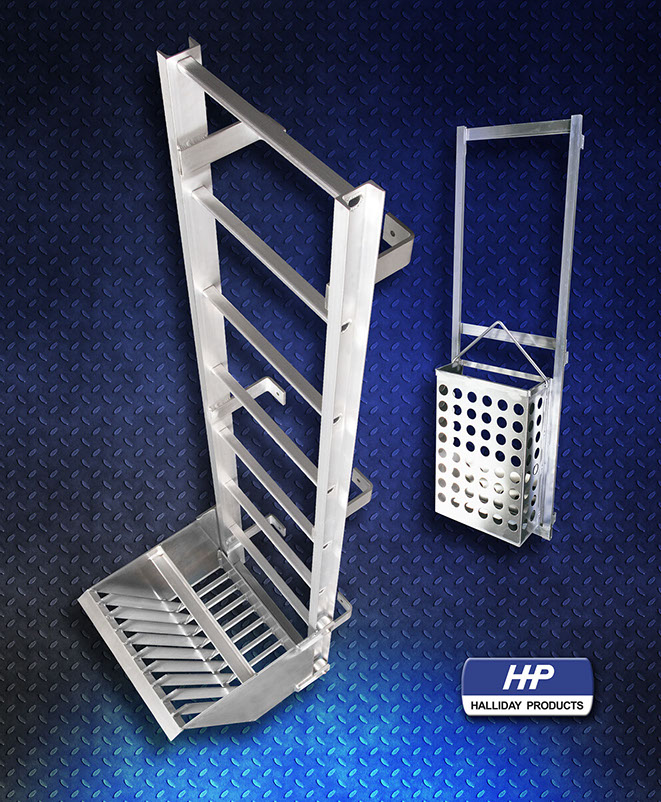

Click image to enlarge

Debris Baskets - SERIES B
