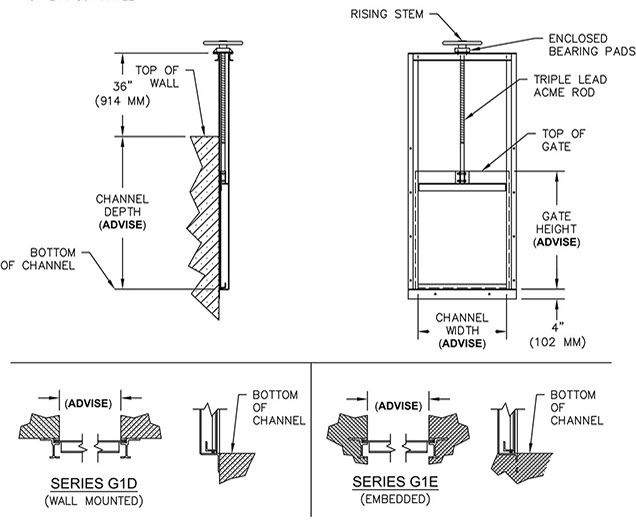

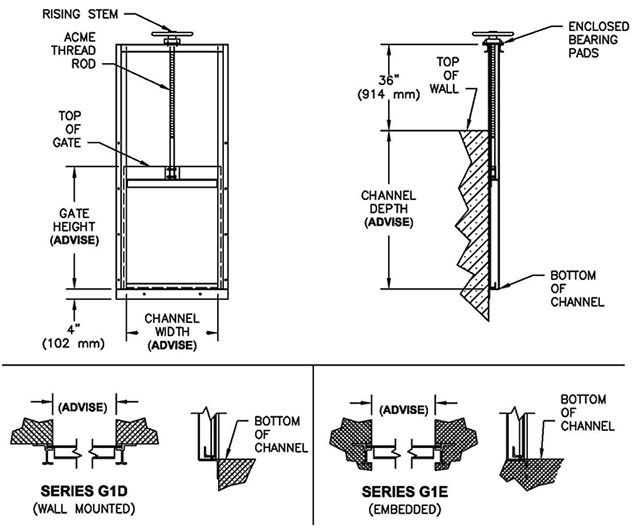

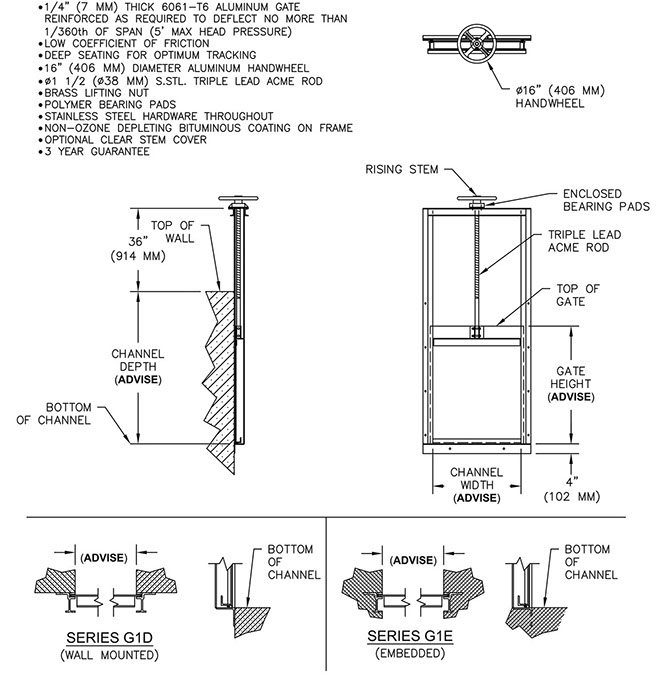

Series G1D & G1E
Slide Gates
Standard Features
- One-Piece 6061-T6 Extruded Aluminum Frame Weighing 4 lbs./ft. (6 kg./Meter)
- Dual Slot Design
- One-Piece Polymer Guide
- 1/4" (7 mm) Thick 6061-T6 Aluminum Gate
- Reinforced As Required To Deflect No More Than 1/360th Of Span (5' Max Head Pressure)
- Low Coefficient Of Friction
- Deep Seating For Optimum Tracking
- 16" (406 mm) Diameter Aluminum Handwheel
- 1 1/2" (38mm) S.Stl. Triple Lead Acme Rod
- Brass Lifting Nut
- Polymer Bearing Pads
- Stainless Steel Hardware Throughout
- Non-Ozone Depleting Bituminous Coating
- Optional Clear Stem Cover
- 3 Year Guarantee
